RM 610.00
SKU: DC-L1

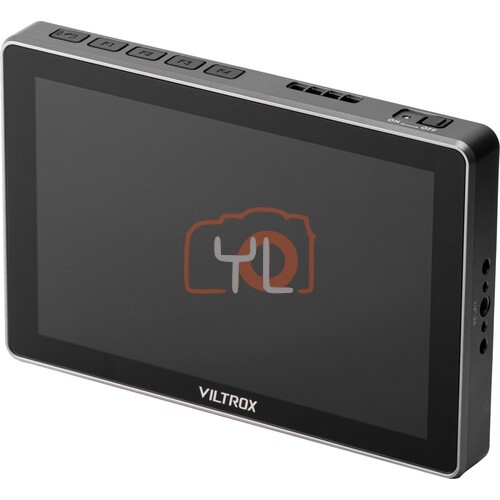

The lightweight DC-L1 7" HDMI On-Camera Touchscreen Monitor from Viltrox provides professional monitoring in a sharp 7" display suitable for outdoor use with a 1280 x 800 resolution. The DC-L1 supports up to DCI/UHD 4K video input via mini-HDMI. It provides an HDMI loop-through output to send video to another monitor. Other features include custom 3D LUTs, L-series and USB power options, and multiple included accessories.
High-Resolution Display

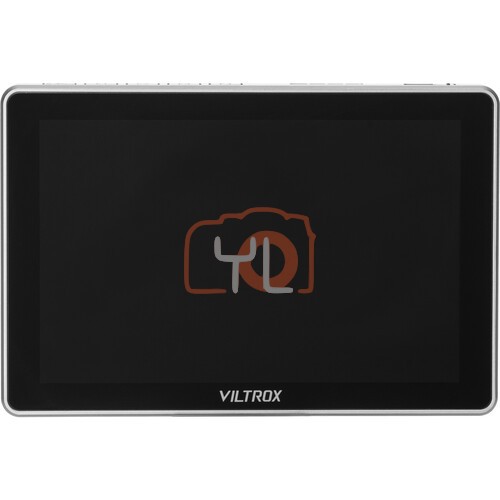

Daylight-viewable 7" on-camera LCD touchscreen monitor with a 1280 x 800 resolution that supports up to DCI/UHD 4K input via HDMI.
Input/Output
The monitor inputs up to DCI/UHD 4K60 video via HDMI and it can output using the HDMI loop output.
There's also a USB port to import 3D LUTs and to update firmware. You can import up to 20 custom 3D LUT files.
Image Tools
The monitor features numerous built-in image tools that assist in managing your image, including focus, brightness histogram, false color, screen focus, anamorphic de-squeeze, and more.
Power Options

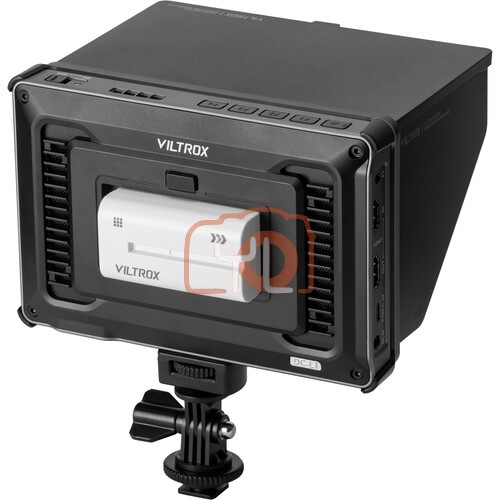

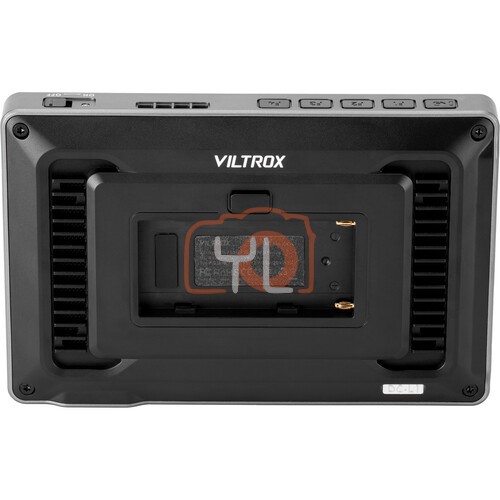

The monitor powers using an L-series-type battery or via a separately available USB-C or DC barrel power supply.
Supported L-series battery types include NP-F550, F750, and F970.
Built-In Gyroscope
A built-in gyroscope provides auto-detection of whether your screen is flipped up or down, and it will flip the image accordingly, making switching camera positions easy.
Mounting Options

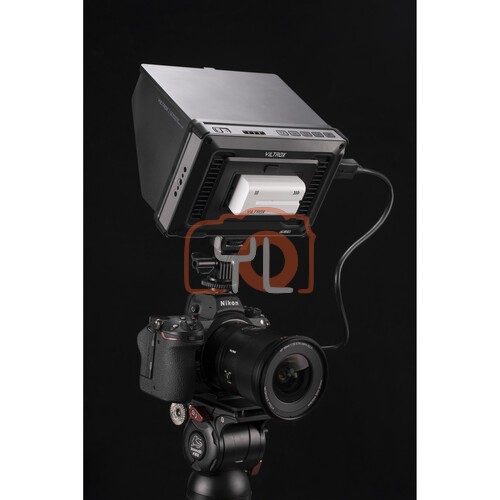

There are 1/4"-20 threads on one side and on the bottom that allow you to mount the monitor onto a cage, directly on a camera, or utilize various accessories such as the included shoe adapter mount or an optional magic arm or tilt mount.
Accessories
Includes a sun hood, an L-series battery, a shoe adapter mount, a soft storage pouch, a screen protector, a USB-A to USB-C cable, an HDMI type A to HDMI type A cable, and an HDMI type A to mini-HDMI cable.
Key Specs
| Display Size |
7.0" / 17.8 cm |
| Native Resolution |
1280 x 800 |
| Touchscreen |
Yes |
| HDR Support |
No |
| Video I/O |
1 x HDMI 1.4 Input |
| Media/Memory Card Slot |
No |
| Video Format |
HDMI |
| Battery |
1x L-Series Mount on Fixed Plate |
| Power Consumption |
8 W |
Display
| Panel Type |
IPS-Type LCD |
| Display Size |
7.0" / 17.8 cm |
| Native Resolution |
1280 x 800 |
| Aspect Ratio |
16:10 |
| Viewing Angle |
170° |
| Touchscreen |
Yes |
| Maximum Brightness |
600 nits / cd/m2 |
| Contrast Ratio |
1000:1 |
| Color Support |
16.7 Million Colors (8-Bit) |
| HDR Support |
No |
| LUT Support |
Yes |
| Image Controls |
Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Histogram, Image Flip, Image Rotate, Overscan, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
Inputs/Outputs
| Video I/O |
1 x HDMI 1.4 Input |
| Embedded Audio |
HDMI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker |
No |
| Power I/O |
1x Barrel (18 VDC / 2 A) Input |
| Other I/O |
1x USB-A (Firmware/LUT Upload) |
| Media/Memory Card Slot |
No |
Wireless
| Wi-Fi |
No |
| Bluetooth |
No |
| Mobile App Compatible |
No |
Format Support
| Video Format |
HDMI |
Power
| Input Power |
10 to 18 VDC at 2 A |
| Battery |
1x L-Series Mount on Fixed Plate |
| Power Consumption |
8 W |
Mounting
| Tripod/Accessory Mounting |
Bottom/Right |
General
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Storage Conditions |
-4 to 140°F / -20 to 60°C |
| Dimensions |
7 x 4.7 x 1.1" / 178.7 x 119.7 x 28 mm |
| Weight |
12.9 oz / 367.00 g |
Packaging Info
| Package Weight |
2.405 lb |
| Box Dimensions (LxWxH) |
8.9 x 5.9 x 4.3" |
