Featuring a newly developed 7K full-frame CMOS sensor, the Canon EOS C50 Cinema Camera is a compact powerhouse for your video and photo needs. The EOS C50 is capable of recording 3:2 Open Gate video at 4K120 and raw video up to 7K60, as well as 32MP stills in photo mode. Simply select between dedicated photo and video modes for an intuitive hybrid shooting experience. Additional advanced features of the C50 include Dual-Pixel CMOS AF II, simultaneous 2K crop recording, built-in Frame.io Camera-to-Cloud integration, and XC protocol support for remote control. An included detachable top handle equips you with two 3-pin XLR inputs as well as onboard controls for easy-to-reach adjustments.

Canon EOS C50: A 7K Open Gate Beast!

Introducing the Canon EOS C50 Cinema Camera: Open a World of Cinematic Possibilities

7K Full-Frame CMOS Sensor

The C50 is equipped with a 7K back-illuminated full-frame CMOS sensor that creates images with low noise for improved performance in a wide variety of lighting environments. This maximizes the camera's full 15+ stop dynamic range in full-frame sensor mode. Using 7K resolution provides greater flexibility in post, such as oversampled 4K60 footage.

3:2 Open Gate Sensor Mode

The first of the cinema EOS line to do so, the C50 offers Open Gate recording options for the use of the full dimensions of the sensor. Select Full Frame 3:2 from the Sensor mode section of the main menu to shoot using the full area of the sensor. Then you can use that information in post to crop or reframe your footage to aspect ratios of your choice. This proves useful when shooting with anamorphic lenses.

Internal Raw and High Frame Rate Recording

Additional recording options of the C50 include 7K60 Cinema RAW Light with three 12-bit recording modes in HQ, ST, and LT. Standard XF-AVC codec is available in 10-bit 4:2:2 for rich detail and smooth images at frame rates up to 120 fps without cropping. You can also record in fast or slow motion up to 4K120 and 2K180. Other recording codecs include XF-AVC S and XF-HEVC S for easy-to-manage naming systems and folder structures while preserving metadata.

Anamorphic De-Squeeze

The C50 features internal support for anamorphic de-squeeze. Preview your footage more accurately when shooting in different magnification ratios by toggling the de-squeeze options in the camera menu: 2x, 1.8x, 1.5x, 1.3x.

Dual-Base ISO

Base ISOs of 800 and 6400 in Canon Log 2 gamma recording mode maximize the full dynamic range of the C50's sensor. The camera also features Auto Selection to automatically toggle between one of the two base ISO levels and another level while maintaining the dynamic range.

Dual-Pixel CMOS AF II

Keep your subject in focus, whether you're shooting in slow or fast motion. The Dual-Pixel CMOS AF II can accommodate speeds up to 4K120 and 2K150, ensuring that even when using high frame rates, your subject remains in focus. The C50's sensor has improved light-capturing efficiency, which widens the area of the sensor that can be used for autofocus. An internal subject detection algorithm with deep learning technology allows you to set face/eye detection to left or right eye priority in both humans and animals. Animal detection also now includes birds.

Simultaneous Crop Recording

Choose between three format options—9:17, 9:16, or 1:1—to automatically crop your image down when shooting in DCI or UHD 4K resolutions. The cropped portion of the frame will be saved in your selected aspect ratio and will be in 2K resolution. All of this reduces turnaround time when formatting videos for social media deliverables.

Dual Card Slots

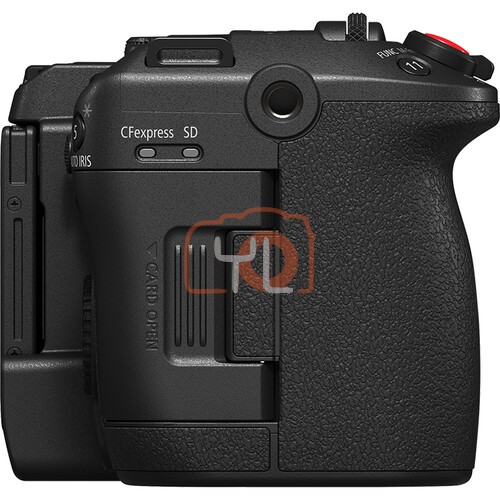

The C50 includes two different card slots—one CFexpress Type-B and one SD card. Both slots support simultaneous recording even when shooting in raw codecs. All recording options are stored to your inserted CFexpress card, while sub-recording and proxy options record to your inserted SD card.

Native Vertical Shooting UI

Vertical shooting is even more intuitive now thanks to the C50's vertical shooting UI. Simply switch to native Vertical Shooting to flip your display accordingly. It also supports touch controls for start/stop recording from vertical screen mode. All of the shooting UI, menu settings, and LCD brightness adjustments are reoriented for an optimized filming experience.

Detachable Handle Unit

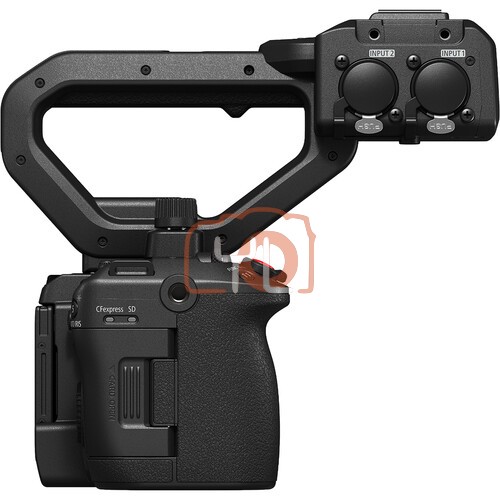

The included, detachable handle unit provides additional connectivity for your C50 handheld configuration. Two full-sized 3-pin XLR inputs with 48V phantom power allow you to integrate shotgun microphones. A built-in start/stop recording button and a zoom rocker offer easy-to-reach controls when filming low-angle shots.

Comprehensive Connectivity

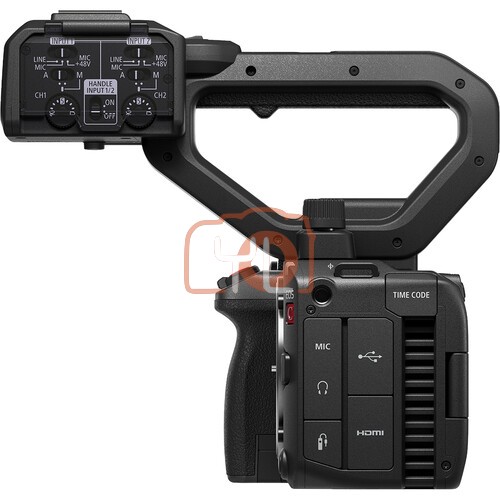

The camera body of the C50 provides you with a wide variety of ports to create a camera rig best suited to your production needs. Connections include an HDMI output, a headphone output, a timecode port, a 3.5mm microphone input, a 2.5mm remote port, and a multipurpose USB-C port for a smartphone or Ethernet adapter. The camera also features an intelligent hot shoe for wireless audio communication.

XC Protocol

Built-in Wi-Fi facilitates XC Protocol for the C50, Canon's IP-based remote control system. XC Protocol allows the camera to be operated by IP-based Canon control units like the RC-IP1000 or RC-IP100, while third-party remote control panels can shade the camera. Use a USB-C to Ethernet adapter for additional connectivity options. Canon's Remote Control Camera application and Multi-Camera Control app can toggle camera settings as well as control multiple cameras. The C50 supports SRT protocols for direct IP streaming of audio and video to compatible sources.

Frame.io Camera-to-Cloud Integration

The C50 has native compatibility with Frame.io's Camera-to-Cloud technology. Send proxy files immediately after internal recording for efficient post-production workflows. The proxy files don't require additional processing or conversion and can be viewed, shared, and edited remotely.

Virtual Production Support

The C50 can output CV Protocol to multiple devices, easily slotting into virtual production workflows. Lens metadata is extracted using the CV Metadata Extraction plugin on compatible computers.

Mirrorless Photo Mode

Transform the C50 from a cinema camera into a full-featured mirrorless camera with the flip of a switch. The C50 borrows from the familiar EOS R series menu system for intuitive control. Hybrid shooters no longer need to carry two cameras at once for a streamlined workflow. The Full-Frame sensor offers a shallow depth of field with a pleasant bokeh, using a standard ISO of up to 64,000. Still photo resolutions can reach 32MP, and you can reach a maximum of 40 shots per second during high-speed continuous shooting. Dual-Pixel CMOS AF II is still supported in this mode.

Key Specs

Lens Mount	Canon RF
Image Sensor	Full-Frame CMOS
Sensor Resolution	Effective: 34 Megapixel (7144 x 4790)
Image Stabilization	No
ISO/Gain Sensitivity	Dual Base: 800 Native in Auto Mode: 800 to 6400 Native in Auto Mode: 400 to 3200 Native in Auto Mode: 160 to 1250
Internal Recording	Raw 12-Bit 6960 x 4640 at 23.98/24.00/25/29.97 fps 6960 x 3672 at 23.98/24.00/25/29.97/50/59.94 fps Raw 12-Bit 5036 x 2656 at 23.98/24.00/25/29.97/50/59.94 fps 2524 x 1332 at 23.98/24.00/25/29.97/50/59.94 fps *Sensor Crops Video H.264/MPEG-4/XF-AVC S 4:2:2 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps H.264/MPEG-4/XF-AVC S 4:2:0 8-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-AVC 4:2:2 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-HEVC S 4:2:2 10-Bit 6912 x 4608 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-HEVC S 4:2:0 10-Bit 6912 x 4608 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
Media/Memory Card Slot	Slot 1: SD/SDHC/SDXC Slot 2: CFexpress Type B (CFast 2.0) [VPG-400 or Faster Recommended]
Video I/O	1x HDMI Output
Mobile App Compatible	Yes: Android & iOS App Name: Canon App
Battery Type	Canon LP-E6, Canon LP-E6NH

Imaging

Lens Mount	Canon RF
Lens Communication	Yes: Cooke /i
Image Sensor	Full-Frame CMOS
Sensor Resolution	Effective: 34 Megapixel (7144 x 4790)
Image Stabilization	No
Built-In ND Filter	No
Built-In CC Filter	No
Capture Type	Stills & Video

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/16000 to 30 Seconds
Shutter Angle	11.25 to 360°
ISO/Gain Sensitivity	Dual Base: 800 Native in Auto Mode: 800 to 6400 Native in Auto Mode: 400 to 3200 Native in Auto Mode: 160 to 1250
Signal-to-Noise Ratio	Not Specified by Manufacturer
Advertised Dynamic Range	15 Stops 16 Stops
Exposure Modes	Auto, Manual

Focus

Focus Modes

Automatic, Manual Focus

Video Capture

Internal Recording	Raw 12-Bit 6960 x 4640 at 23.98/24.00/25/29.97 fps 6960 x 3672 at 23.98/24.00/25/29.97/50/59.94 fps Raw 12-Bit 5036 x 2656 at 23.98/24.00/25/29.97/50/59.94 fps 2524 x 1332 at 23.98/24.00/25/29.97/50/59.94 fps *Sensor Crops Video H.264/MPEG-4/XF-AVC S 4:2:2 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps H.264/MPEG-4/XF-AVC S 4:2:0 8-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-AVC 4:2:2 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-HEVC S 4:2:2 10-Bit 6912 x 4608 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps XF-HEVC S 4:2:0 10-Bit 6912 x 4608 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support	Yes
Gamma Curve	Canon Log 2, Canon Log 3, Hyper Gamma
Built-In Microphone	No
Audio Recording	Raw, XF-AVC: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-HEVC S: 2-Channel, 16-Bit at 48 kHz via AAC LC Audio XF-HEVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S: 2-Channel, 16-Bit at 48 kHz via AAC LC Audio XF-AVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
IP Streaming	Yes

Interface

Media/Memory Card Slot	Slot 1: SD/SDHC/SDXC Slot 2: CFexpress Type B (CFast 2.0) [VPG-400 or Faster Recommended]
Internal Storage	No
Video I/O	1x HDMI Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body (Plug-in Power) 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x XLR 3-Pin Microphone Input on Included Handle 1x XLR 3-Pin Line Input on Included Handle
Other I/O	1x 2.5 mm Sub-Mini (Remote) Control 1x USB-C 1x DIN 1.0/2.3 (Timecode) Input/Output 1x Proprietary
Wireless	Wi-Fi / 2.4 GHz Radio/RF / 5.8 GHz Radio/RF
Mobile App Compatible	Yes: Android & iOS App Name: Canon App
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

Display Type	Articulating 3" Touchscreen LCD
Resolution	No

Power

Battery Type

Canon LP-E6, Canon LP-E6NH

Environmental

Operating Conditions

23 to 113°F / -5 to 45°C at 60 to 85% Humidity

General

Shoe Mount	1x Intelligent Hot Shoe
Accessory Mounting Thread	1x 1/4"-20
Dimensions (W x H x D)	5.6 x 3.5 x 3.7" / 143 x 88 x 95 mm 8.7 x 9.4 x 7.3" / 222 x 239 x 186 mm (With Handle, Mic Holder)
Weight	23.5 oz / 665 g (Body Only) 2.4 lb / 1110 g (With Battery, Handle, Recording Media)

• 7K FF Back-Illuminated CMOS Sensor
• 7K 3:2 Open Gate, UHD 4K120, 2K180
• Dual-Base ISO: 800 and 6400
• Full-Size HDMI Output, DIN Timecode Port
• Dual-Pixel CMOS AF II
• Top Handle with XLR Audio Inputs
• Adjustable-Speed Zoom Rocker
• Simultaneous Crop Recording
• Frame.io Camera-to-Cloud Integration
• CFexpress Type-B and SD Card Slots

• Canon EOS C50 Full-Frame Cinema Camera (Canon RF)
• Handle Unit
• Canon LP-E6P Lithium-Ion Battery
• Canon LC-E6 Charger for LP-E6/LP-EL/LP-E6NH Battery Packs
• Microphone Holder
• Shoulder Strap
• Screw for Microphone Holder Unit
