Tether Tools (TB-QR-004G) TetherBlock QR Plus Quick Release Plate (Thunder Gray)

RM 810.00

  • Arca-Type Plate for Tethered Photography
  • Adapts Camera to Arca-Type Clamps
  • Integrates with Tethering Data Cable
  • Prevents Damage to Camera Data Port
  • Grooves Secure Cable under Camera
  • Non-Slip Surface
  • Compatible with 1/4"-20 Mounts
  • Two 1/4"-20 Female Accessory Threads

SKU: TB-QR-004G

Out of Stock
  Price Match

  Wishlist

Tether Tools TB-QR-004G Overview

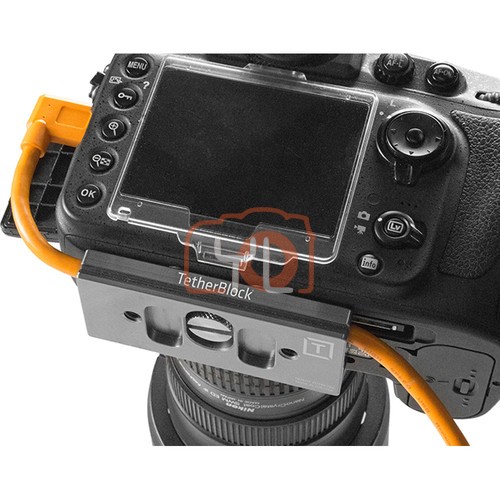

The thunder gray TetherBlock QR Plus Quick Release Plate from Tether Tools is designed to adapt a camera to an Arca-type compatible quick release clamp and prevent damage to the camera's data port while tethered to a computer or hard drive.

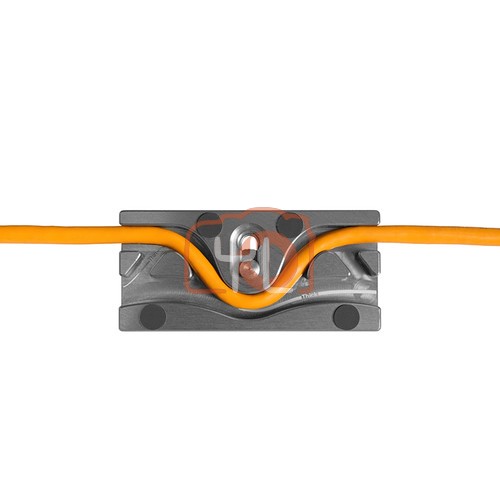

Along the 1/4"-20 mount and anti-slip pads on the QR Plus's top surface are grooves that can channel a section of data cable into one end of the plate's length and out the other before the plate is attached to a compatible camera. This allows a USB or FireWire cable that is connected to a camera's data port for tethered photography to be secured under the camera and within the QR Plus. Before being able to reach the point at which a data cable and a camera connect, tension along the cable which could then occur from accidentally tugging or tripping on it is interrupted by the plate's grooves. Strain from abrupt and incorrectly angled detachment of a data cable that could otherwise dislodge a camera's data port or cause it to function improperly is avoided.

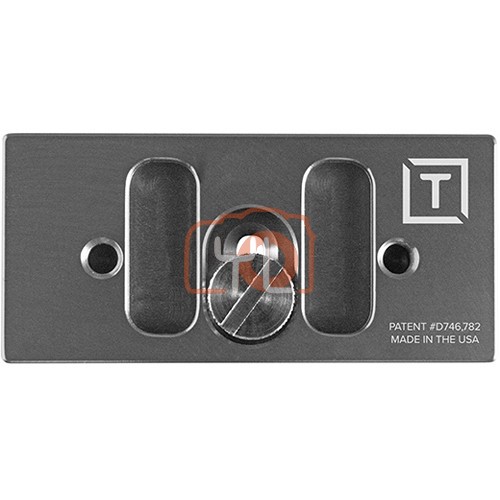

For direct attachment to accessories such as a tripod or straps that feature 1/4"-20 mounts, the underside of the plate is tapped with two 1/4"-20 female accessory threads.

  • Quick release plate for tethered photography
  • Compatible with Arca-type clamps
  • 1/4"-20 mount allows connection to a compatible camera
  • Rubberized, anti-slip pads for connected camera
  • Grooves along plate's top surface channel a section of data cable into one end of the plate's length and out the other
  • USB or FireWire cable that is connected to a camera's data port for the purpose of tethered photography can be secured under the camera and within the surface of the QR Plus
  • Prevents tension due to accidental tugging or tripping on data cable from causing abrupt and incorrectly-angled detachment of cable from camera data port
  • Helps avoid damage to data port
  • Two 1/4"-20 female accessory threads for direct connection to a 1/4"-20 mount

Tether Tools TB-QR-004G Specs

Quick Release Plate

Mounting

1x 1/4"-20 Male
2x 1/4"-20 Female

Strap Loop

No

General

Quick Release Plate Type

Arca-Type

Quick Disconnect System

No

Bubble Level

No

Materials

Aluminum

Dimensions

3.3 x 1.75 x 0.42" / 8.38 x 4.45 x 1.07 cm

Weight

2 oz / 56.7 g
