Pre-Order

Hollyland Cosmo C2 HDMI/SDI Wireless Video Transmission System

RM 4899.00

RM 3999.00

  • Wireless Video Transmitter/Receiver Set
  • Transmitter: HDMI/SDI In, SDI Loop Out
  • Receiver: 2 HDMI/SDI Outputs
  • 3000' Line-of-Sight 1080p60 Transmission
  • 5.1 to 5.85 GHz Frequency Bands
  • Supports UVC, RTMP & NDI|HX Streaming
  • FPS Booster Converts Frame Rates
  • HEVO 2.0 Technology, 33 ms Latency
  • DC Input, L-Series Battery Plate

SKU: HL-COSMO C2 1TX 1RX

Out of Stock
  Price Match

  Wishlist

Hollyland Cosmo C2 Overview

The Cosmo C2 HDMI/SDI Wireless Video Transmission System from Hollyland allows you to wirelessly transmit high-resolution video up to 1080p60 over long distances up to 3000' to a single receiver, allowing flexible video monitoring and distribution for your studio or field production. This kit comprises a transmitter and a receiver that communicate over the 5.1 to 5.85 GHz wireless frequency range. Additional improvements to the series include HEVO 2.0 technology, UVC/RTMP/NDI|HX streaming support, and expanded power options.

Strong Signal Strength, Seamless Frequency Hopping

The Cosmo C2 can transmit 1080p60 video up to 3000' line-of-sight with a low 33 ms latency. The system operates on the 5 GHz frequency band, automatically detecting surrounding frequency interference and seamlessly switching to a clean channel via HEVO 2.0 technology. This makes for an uninterrupted transmission signal.

Connectivity

  • The transmitter features one HDMI input, one SDI input, and one SDI loop output.
  • The receiver features two HDMI outputs, two SDI outputs, and an RJ45 Ethernet port.
  • USB-C ports on both units allow you to connect to the included USB-C OTG adapter and your personal computer for UVC streaming.

RTMP and NDI|HX Streaming

The Cosmo C2 unlocks RTMP streaming for direct live streaming to YouTube, Twitch, and other platforms. The receiver unit supports NDI|HX protocol, transmitting video streams via a single network cable for a cleaner production space.

FPS Booster, Fractional Frame Rate

Using a frame rate compensation algorithm, the Cosmo C2 receiver can convert low frame rate inputs like 1080p24/25/30 to high frame rate outputs at 1080p60, making smoother visuals. The Cosmo C2 can also transmit HDMI/SDI fractional frame rate input/output signals to ensure flexibility while filming.

Frozen Frame

If your transmission is interrupted, Cosmo C2 can freeze the last frame of your feed, effectively preventing the display of the manufacturer's logo. There is also the option to customize the logo image if you prefer to use a USB flash drive for a more professional appearance.

Versatile Power and Mounting Options

Each unit can be powered via DC input using the included power supply when working on set. In field applications or in studio spaces with limited outlets, both units offer battery plate options. The transmitter features an L-series battery plate, and the receiver features a V-mount battery plate for higher-capacity power sources. Use the 1/4"-20 threads on the units or the cold shoe adapter to secure them to the mounting configurations of your choice.

Hollyland Cosmo C2 Specs

Key Specs

Video I/O

Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Transmitter: 1x BNC (3G-SDI) Loop Output
Receiver: 2x HDMI 1.4b Output
Receiver: 2x BNC (3G-SDI) Output

Embedded Audio

HDMI/SDI

Latency

33 ms

Video Format

HDMI/SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Battery

Receiver: 1x V-Mount on Fixed Plate
Transmitter: 1x L-Series Mount on Fixed Plate

Power Consumption

Transmitter: 10 W
Receiver: 11 W

Inputs/Outputs

Antenna I/O

Transmitter/Receiver: 2x RP-SMA

Video I/O

Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Transmitter: 1x BNC (3G-SDI) Loop Output
Receiver: 2x HDMI 1.4b Output
Receiver: 2x BNC (3G-SDI) Output

Embedded Audio

HDMI/SDI

Audio I/O

No

Power I/O

Transmitter/Receiver: 1x Barrel Input

Other I/O

Transmitter/Receiver: 1x USB-C
Receiver: 1x RJ45 (10/100 Ethernet)

Encryption

No

Wireless

Wireless Range

3000' / 914.4 m

Channel Bandwidth

40 MHz

Frequency Range

5.1 to 5.85 GHz

Latency

33 ms

RF Power

< 23 dBm

RF Sensitivity

-90 dBm

Wi-Fi

Yes

Bluetooth

No

Mobile App Compatible

No

Cellular Support

No

Format Support

Video Format

HDMI/SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Audio Format

Not Specified by Manufacturer

Timecode Support

No

Power

Input Power

6 to 16 VDC

Battery

Receiver: 1x V-Mount on Fixed Plate
Transmitter: 1x L-Series Mount on Fixed Plate

Power Consumption

Transmitter: 10 W
Receiver: 11 W

Mounting

Tripod/Accessory Mounting

Receiver/Transmitter, Bottom
1x 1/4"-20 Female

General

Status Display

On Receiver Only

Environmental Resistance

No

Dimensions

Transmitter: 4.5 x 2.7 x 1.4" / 114.8 x 69 x 35.5 mm
Receiver: 5.6 x 3.4 x 1.3" / 142 x 87.2 x 33.2 mm

Weight

Transmitter: 7.4 oz / 210.00 g
Receiver: 15.5 oz / 440.00 g

  • Wireless Video Transmitter/Receiver Set
  • Transmitter: HDMI/SDI In, SDI Loop Out
  • Receiver: 2 HDMI/SDI Outputs
  • 3000' Line-of-Sight 1080p60 Transmission
  • 5.1 to 5.85 GHz Frequency Bands
  • Supports UVC, RTMP & NDI|HX Streaming
  • FPS Booster Converts Frame Rates
  • HEVO 2.0 Technology, 33 ms Latency
  • DC Input, L-Series Battery Plate

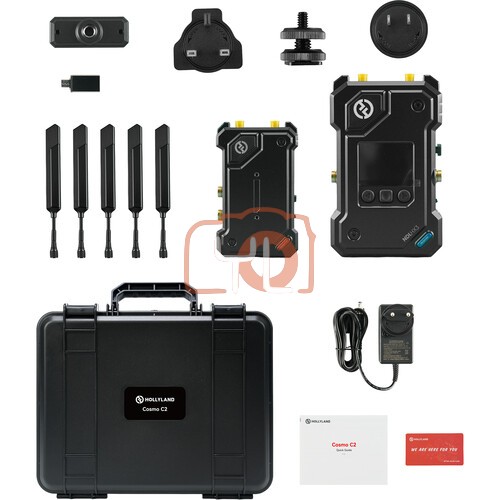

  • Hollyland Cosmo C2 HDMI/SDI Wireless Video Transmission System
  • Hollyland Cosmo C2 HDMI/SDI Wireless Video Transmitter
  • Cosmo C2 Receiver
  • 5 x Blade Antenna
  • USB-C OTG Adapter
  • Expansion Accessory
  • Cold Shoe Mount
  • Power Adapter (12 VDC, 2A)
  • Carrying Case

Hollyland  Cosmo  C2  HDMI/SDI  Wireless  Video  Transmission  System
