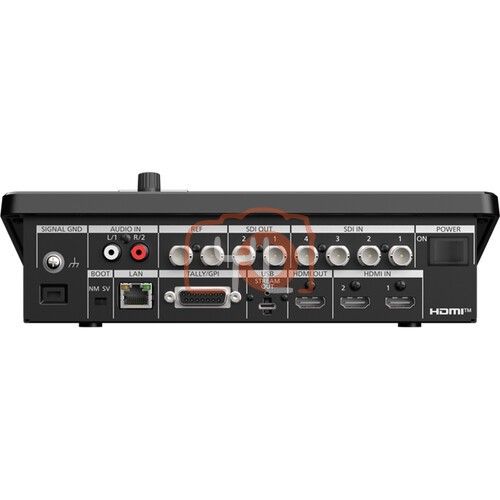

The AV-HSW10 3G-SDI/NDI/HDMI 1080p Compact Live Switcher from Panasonic provides broadcast-quality video in a compact chassis. It provides you with four 3G-SDI and two HDMI inputs which output to two 3G-SDI and one HDMI port for local video distribution. Connect an IP-enabled PTZ to the LAN terminal and unlock IP streaming with one 3G-SDI and one HDMI input with corresponding output ports while adding one NDI streaming input.
All of these ports support up to 1080p video. Multiple Keyers, two AUX buses, and a multiviewer output offer creative control over your video broadcast. Up, down, and cross conversion are supported by the AV-HSW10, and there is a frame synchronizer on all inputs.
High-Quality Video
The AV-HSW10 supports 10-bit processing and is equipped with diverse functions like frame synchronizers, Genlock, and various keyers. It also has a 2RCA audio input port for switching between audio and visual sources. This allows the unit to excel in professional online lectures, corporate webinars, and other live event applications.
Diverse IP Interface
NDI, NDI|HX, and SRT IP transmission standards are supported by the switcher. When combined with IP-enabled PTZ cameras, it creates a simple one-to-one video production system. It also supports RTMP protocol for direct upload to streaming services and a USB-C video class port for compatibility with web conferencing services. The system can be adjusted depending on your production needs, all while allowing for one-person operation.
Intuitive Operation

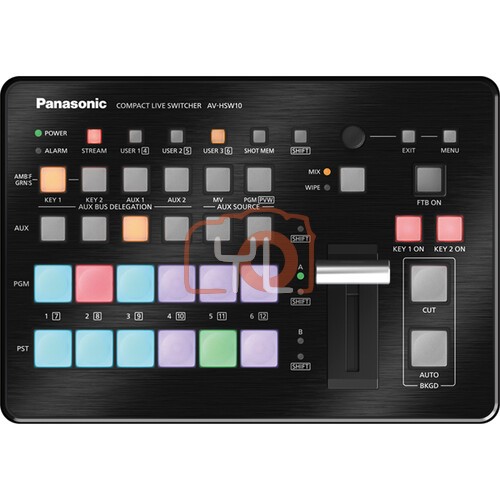

Tactile response buttons with soft silicone rubber make for easy switching between sources. A T-shaped fader on the unit is similar in design to higher-end models. Two channels of keyers can be programmed for Picture in Picture, linear, luminance, or chroma key for high-quality compositing. Two AUX buses are also provided.
Multiviewer
The multiviewer output allows up to 16 split screen displays on a single screen. It features 10 selectable patterns to customize the output appearance.
Remote Control with Software Control Panel
The AW-HSW10 can be remotely controlled using Panasonic's Software Control Panel for video monitoring and switching with a networked PC. Multiview images can be checked remotely to divide up production tasks for greater on-site efficiency.
