Specs

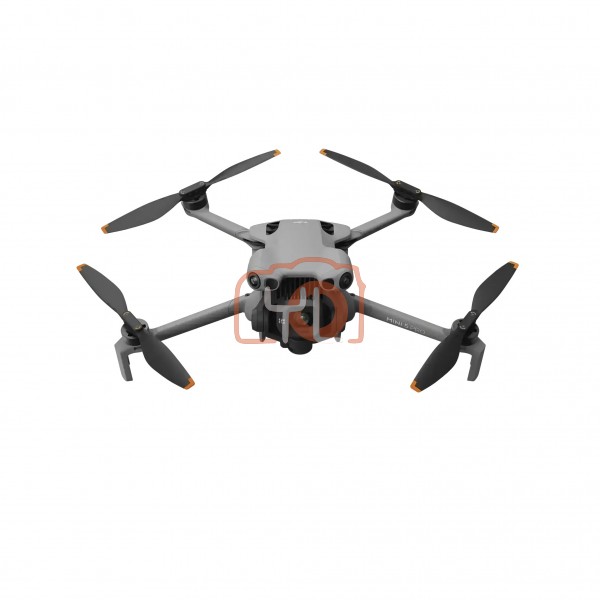

Aircraft

• Takeoff Weight

• 249.9 g

  ^{‌Product weight may vary due to differences in batch materials and other factors. The actual weight is approximately 249.9 g ± 4 g and is subject to the actual product. Before flying with the Intelligent Flight Battery or the Intelligent Flight Battery Plus, check and comply with local laws and regulations to confirm whether registration or an exam is required.
  The Intelligent Flight Battery Plus is not sold in Europe.}

• Dimensions

• Folded (without propellers): 157×95×68 mm (L×W×H)
  Unfolded (with propellers): 255×181×91 mm (L×W×H)

• Max Ascent Speed

• 10 m/s (S Mode)
  5 m/s (N Mode)
  5 m/s (C Mode)

• Max Descent Speed

• 8 m/s (S Mode, using DJI Mini 5 Pro Intelligent Flight Battery Plus*)
  6 m/s (S Mode, using DJI Mini 5 Pro Intelligent Flight Battery)
  5 m/s (N Mode)
  5 m/s (C Mode)

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

• Max Horizontal Speed

• 19 m/s* (S Mode, using DJI Mini 5 Pro Intelligent Flight Battery Plus**)
  18 m/s* (S Mode, using DJI Mini 5 Pro Intelligent Flight Battery)
  15 m/s*** (tracking status)

  ^{* Measured in a wind tunnel test environment when taking off from an altitude of 0 meter and ascending vertically to a height of 1.5 meters above the ground in Sport mode, and is for reference only. Always pay attention to reminders on the camera view during your flight.
  ** The Intelligent Flight Battery Plus is not sold in Europe.
  *** Measured in an open, windless test environment with the drone taking off from an altitude of 0 meters.}

• Max Takeoff Altitude

• 6000 m (using DJI Mini 5 Pro Intelligent Flight Battery)
  4500 m (using DJI Mini 5 Pro Intelligent Flight Battery Plus*)

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

• Max Flight Time

• 36 minutes (using DJI Mini 5 Pro Intelligent Flight Battery)

  ^{Measured by the aircraft flying forward at a constant speed of 21.6 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, until forced landing due to low voltage. Data is for reference only. Always pay attention to reminders in the app during your flight.}

  52 minutes (using DJI Mini 5 Pro Intelligent Flight Battery Plus*)

  <sup>Measured by the aircraft flying forward at a constant speed of 25.2 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, until forced landing due to low voltage. Data is for reference only. Always pay attention to reminders in the app during your flight.
  * The Intelligent Flight Battery Plus is not sold in Europe.</sup>

• Typical Flight Time

• 21 minutes (using DJI Mini 5 Pro Intelligent Flight Battery)
  33 minutes (using DJI Mini 5 Pro Intelligent Flight Battery Plus*)

  <sup>Measured at sea level in a breezy environment, with the aircraft taking off with a fully charged battery, Obstacle Avoidance Action set to Brake, and the camera set to record at 4K/60fps. After takeoff, the aircraft ascends to 120  m and flies forward 1 km at 15 m/s before recording begins (about 15 minutes of recording with the Intelligent Flight Battery, and about 20 minutes with the Intelligent Flight Battery Plus). During recording, the aircraft adjusts gimbal movements and its flight position at speeds of up to 10 m/s over a total distance of approximately 2 km, while hovering for the remaining time. The aircraft hovers until a RTH reminder appears, then initiates auto RTH and completes a safe landing. Data is for reference only. Always pay attention to reminders in the app during your flight.
  * The Intelligent Flight Battery Plus is not sold in Europe.</sup>

• Max Flight Distance

• 21 km (using DJI Mini 5 Pro Intelligent Flight Battery)
  32 km (using DJI Mini 5 Pro Intelligent Flight Battery Plus*)

  <sup>Measured by the aircraft flying forward at a constant speed of 39.6 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, until forced landing due to low voltage. Data is for reference only. Always pay attention to reminders in the app during your flight.
  * The Intelligent Flight Battery Plus is not sold in Europe.</sup>

• Max Wind Speed Resistance

• 12 m/s

• Max Pitch Angle

• 38°

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System

• GPS + Galileo + BeiDou

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with satellite positioning)

  Horizontal:
  ±0.3 m (with vision positioning)
  ±0.5 m (with satellite positioning)

• Internal Storage

• 42 GB

• Class

• C0 (EU), with the option to apply for C1 (EU) in the DJI Fly app.

Camera

• Image Sensor

• 1-inch CMOS, 50MP Effective Pixels

• Lens

• FOV: 84°
  Format Equivalent: 24 mm
  Aperture: f/1.8
  Focus: 0.5 m to ∞

• ISO Range

• Video
  Normal:
  100-12800 (Normal)
  100-3200 (D-Log M)
  100-3200 (HLG)
  Slow Motion:
  100-6400 (Normal)
  100-3200 (D-Log M)
  100-3200 (HLG)

  100-6400 (12 MP)
  100-3200 (50 MP)

• Shutter Speed

• 12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure)
  50MP Photo: 1/8000-2 s

• Max Image Size

• 8192×6144

• Still Photography Modes

• Single Shot: 12 MP and 50 MP
  Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames
  Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step
  Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 s

• Photo Format

• JPEG/DNG (RAW)

• Video Resolution

• H.264/H.265
  4K: 3840×2160@24/25/30/48/50/60/120*fps
  FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps

  ^{* Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding.}

• Video Format

• MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

• Max Video Bitrate

• H.264/H.265: 130 Mbps

  ^{* When shooting 4K/120fps video in D-Log M mode with DJI Mini 5 Pro, the video encoding bitrate can reach up to 130Mbps, corresponding to a video stream frame rate of 120fps. However, since slow-motion video files are encapsulated at 30fps, the video length displayed on the player is four times the recording duration, and the bitrate of the parsed encapsulated file is approximately one-fourth of the original encoding bitrate.}

• Supported File System

• exFAT

• Color Mode and Sampling Method

• Normal (FHD):
  8-bit 4:2:0 (H.264)

  Normal (FHD/4K):
  10-bit 4:2:0 (H.265)

  HLG/D-Log M:
  10-bit 4:2:0 (H.265)

• Digital Zoom

• 12MP Photo: 1-3x
  4K: 1-3x
  FHD: 1-4x

Gimbal

• Stabilization

• 3-axis mechanical gimbal (tilt, roll, pan)

• Mechanical Range

• Tilt: -135° to 80°
  Roll: -230° to 95°
  Pan: -25° to 25°

• Controllable Range

• Tilt: -90° to 55°
  Roll: -180° to 45°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.005°

Sensing

• Sensing Type

• Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

• Forward

• Measurement Range: 0.5-18 m
  Detection Range: 0.5-200 m
  Effective Sensing Speed: Flight Speed ≤ 15 m/s
  FOV: Horizontal 90°, Vertical 72°

• Backward

• Measurement Range: 0.5-18 m
  Effective Sensing Speed: Flight Speed ≤ 14 m/s
  FOV: Horizontal 90°, Vertical 72°

• Lateral

• Measurement Range: 0.5-12 m
  Effective Sensing Speed: Flight Speed ≤ 14 m/s
  FOV: Horizontal 90°, Vertical 72°

• Upward

• Measurement Range: 0.5-18 m
  Effective Sensing Speed: Flight Speed ≤ 6 m/s
  FOV: Front and Back 72°, Left and Right 90°

• Downward

• Measurement Range: 0.3-14 m
  Effective Sensing Speed: Flight Speed ≤ 6 m/s
  FOV: Front and Back 106°, Left and Right 90°

• Operating Environment

• Forward, Backward, Left, Right, and Upward:
  Surfaces with discernible patterns and adequate lighting (lux > 1)

  Downward:
  Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 1)

• 3D Infrared Sensor

• Forward-Facing LiDAR
  Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%)
  FOV: Up and Down 60°, Left and Right 60°

  Downward-Facing Infrared Sensor
  Measurement Range: 0.3-8 m (reflectivity > 10%)
  FOV: Front and Back 60°, Left and Right 60°

Video Transmission

• Video Transmission System

• O4+

• Live View Quality

• Remote Controller:
  1080p/30fps, 1080p/60fps

• Operating Frequency

• 2.400-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz

  ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.1 GHz:
  < 23 dBm (CE)

  5.8 GHz:
  < 33 dBm (FCC)
  < 30 dBm (SRRC)
  < 14 dBm (CE)

• Max Transmission Distance (unobstructed, free of interference)

• FCC: 20 km
  CE: 10 km
  SRRC: 10 km
  MIC: 10 km

  ^{Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.}

• Max Transmission Distance (unobstructed, with interference)

• Strong Interference: Urban landscape, approx. 1.5-4 km
  Medium Interference: Suburban landscape, approx. 4-10 km
  Low Interference: Suburb/Seaside, approx. 10-20 km

  ^{Measured under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Transmission Distance (obstructed, with interference)

• Low Interference and Obstructed by Buildings: Approx. 0-0.7 km
  Low Interference and Obstructed by Trees: Approx. 0.7-4.5 km

  ^{Measured under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Download Speed

• O4+:
  10 MB/s (with DJI RC-N3 Remote Controller)
  10 MB/s (with DJI RC 2)
  Wi-Fi 6: Up to 100 MB/s*

  ^{* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.}

• Lowest Latency

• Aircraft + Remote Controller: Approx. 120 ms

  ^{Depending on the actual environment and mobile device.}

• Antenna

• 4 antennas, 2T4R

Wi-Fi

• Protocol

• 802.11 a/b/g/n/ac/ax

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 20 dBm (FCC/CE/SRRC/MIC)

  5.8 GHz:
  < 26 dBm (FCC/SRRC)
  < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.4

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• < 10 dBm

Battery

• Capacity

• DJI Mini 5 Pro Intelligent Flight Battery: 2788 mAh
  DJI Mini 5 Pro Intelligent Flight Battery Plus*: 4680 mAh

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

• Weight

• DJI Mini 5 Pro Intelligent Flight Battery: approx. 71.2 g
  DJI Mini 5 Pro Intelligent Flight Battery Plus*: approx. 117 g

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

• Nominal Voltage

• DJI Mini 5 Pro Intelligent Flight Battery: 7.16 V
  DJI Mini 5 Pro Intelligent Flight Battery Plus*: 7 V

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

• Max Charging Voltage

• DJI Mini 5 Pro Intelligent Flight Battery: 8.6 V
  DJI Mini 5 Pro Intelligent Flight Battery Plus*: 8.6 V

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

• Battery Type

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• DJI Mini 5 Pro Intelligent Flight Battery: 19.52 Wh
  DJI Mini 5 Pro Intelligent Flight Battery Plus*: 33.51 Wh

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• DJI Mini 5 Pro Intelligent Flight Battery:
  1 battery can be fully charged in approx. 69 minutes by charging through the drone using the DJI 65W Portable Charger.
  1 battery can be fully charged in approx. 46 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger.
  3 batteries can be fully charged in approx. 115 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger.

  DJI Mini 5 Pro Intelligent Flight Battery Plus*:
  1 battery can be fully charged in approx. 94 minutes by charging through the drone using the DJI 65W Portable Charger.
  1 battery can be fully charged in approx. 56 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger.
  3 batteries can be fully charged in approx. 193 minutes using the Two-Way Charging Hub and DJI 65W Portable Charger.

  <sup>Charging time is measured in a test environment with a temperature of 25°C. Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.
  * The Intelligent Flight Battery Plus is not sold in Europe.</sup>

Battery Charging Hub

• Input

• USB-C: 5-15 V, max 4.3 A

• Output

• Battery Port: 5-15 V, max 2 A

• Charging Type

• DJI Mini 5 Pro Intelligent Flight Battery: Two batteries charged in parallel
  DJI Mini 5 Pro Intelligent Flight Battery Plus*: Three batteries charged in sequence

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

• Compatibility

• DJI Mini 5 Pro Intelligent Flight Battery
  DJI Mini 5 Pro Intelligent Flight Battery Plus*

  ^{* The Intelligent Flight Battery Plus is not sold in Europe.}

Storage

• Recommended microSD Cards

• Lexar Silver plus 64GB A2 V30 microSDXC
  Lexar Silver plus 128GB A2 V30 microSDXC
  Lexar Silver plus 256GB A2 V30 microSDXC
  Lexar Silver plus 512GB A2 V30 microSDXC
  Lexar Silver plus 1TB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 64GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 128GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 256GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 512GB A2 V30 microSDXC

DJI RC-N3 Remote Controller

• Max Operating Time

• Without charging any mobile device: 3.5 hours
  When charging a mobile device: 1.5 hours

• Max Supported Mobile Device Size

• 180×86×10 mm (L×W×H)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• 2 hours

• Charging Type

• It is recommended to use a 5V/2A charger.

• Battery Capacity

• 9.36 Wh (3.6 V, 2600 mAh)

• Weight

• Approx. 320 g

• Dimensions

• 104.2×150×45.2 mm (L×W×H)

• Supported Mobile Device Port Type

• Lightning, USB-C, Micro-USB

  ^{Using a mobile device with a Micro-USB port requires the DJI RC-N Series RC Cable (Standard Micro USB Connector), which is sold separately.}

• Video Transmission Operating Frequency

• 2.400-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz

  ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

• Video Transmission Transmitter Power (EIRP)

• 2.4 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.1 GHz:
  < 23 dBm (CE)

  5.8 GHz:
  < 33 dBm (FCC)
  < 14 dBm (CE)
  < 30 dBm (SRRC)
