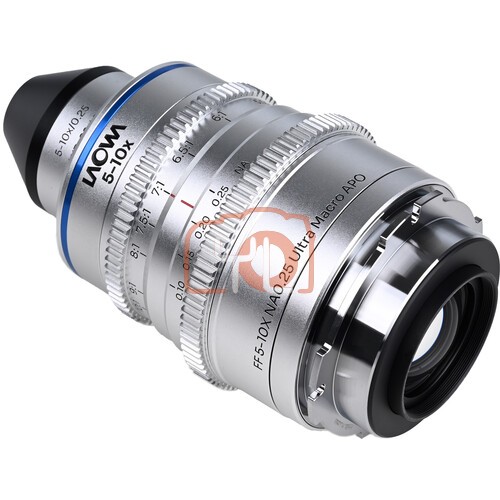

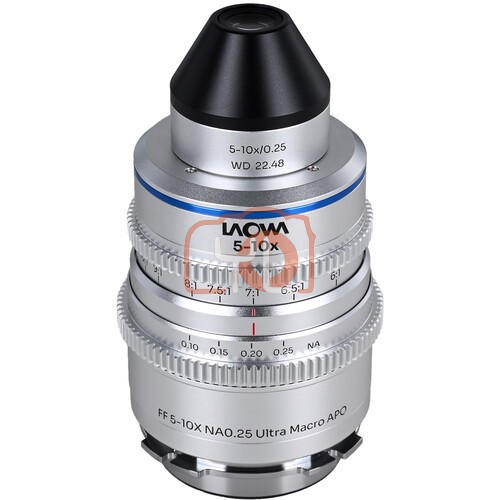

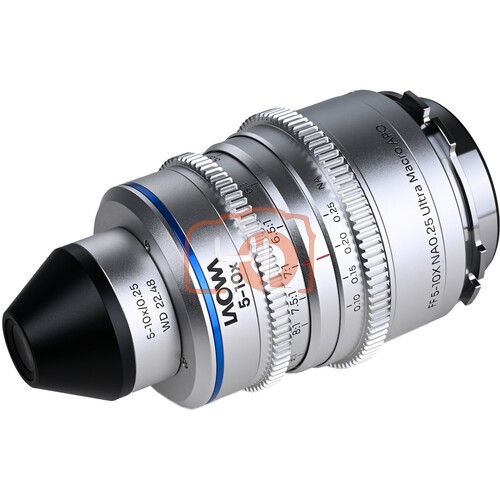

Full-Frame Ultra Macro Lens

Add distinctive, defining character to your imagery using the ARRI PL-mount Laowa Aksen 17.5mm f/1.7 5-10x Ultra Macro APO Cine Lens from Venus Optics. Ideal for creative, commercial, and scientific macro capture, this full-frame, cine-style lens pairs high optical quality with a 5 to 10x magnification range. Its parfocal design ensures that focus remains sharp while the lens length remains constant, eliminating the need to adjust your camera or lighting setup.

Extended 5 to 10x Magnification

• The Aksen 17.5mm Ultra Macro lens enables you to capture extremely close-up views with 5 to 10x magnification.
• Focus is fixed, enabling you to simply adjust the position of your subject while maintaining focus at distances down to 0.9".
• This full-frame lens can be used on medium-format cameras but will produce varying levels of vignetting at different magnifications.

APO Design

Designed with apochromatic correction, the Aksen 17.5mm Ultra Macro lens creates ultrasharp images with little to no color fringing, even at higher magnifications.

NOTE: Exposure compensation is required at high magnifications.

Cine-Style Lens

This compact, lightweight macro lens has cine-style gearing and includes a tripod collar support and two 15mm rods for mounting lens accessories.

Focal Length

17.5mm

Maximum Aperture

f/1.7

Lens Mount

Interchangeable Mount with Included ARRI PL

Lens Format Coverage

Full-Frame

Filter Thread

37 mm (Rear Filter)

Image Stabilization

No

Electronic Communication

No

Focal Length

17.5mm

Maximum Aperture

f/1.7

Minimum Aperture

f/5.6

Lens Mount

Interchangeable Mount with Included ARRI PL

Lens Format Coverage

Full-Frame

Focus Scales

No

Optical Design

17 Elements in 12 Groups

Filter Thread

37 mm (Rear Filter)

Zoom Ratio

10x (Manual)

Minimum Focus Distance

0.89" / 22.48 mm

Magnification

10:1 Macro Reproduction Ratio
5 to 10x Magnification

Aperture/Iris Blades

11

Image Stabilization

No

Lens Mounting

No

Gear Standard

Iris, Zoom: 0.8 MOD

Electronic Communication

No

Diameter

Front: 2.8" / 70.2 mm

Length

5" / 127.5 mm

Weight

1.3 lb / 609 g

• Full Frame | f/1.7 to f/5.6
• Ultra Macro with 5 to 10x Magnification
• 0.8 MOD Gearing
• 70.2mm Front Outside Diameter
• Interchangeable ARRI PL Mount
• Fixed Working Distance: 0.9"
• Internal Zoom, Constant Lens Size
• Near-Zero Chromatic Aberration
• 15-Blade Iris
• Includes Tripod Collar, 2 x 15mm Rods

• Laowa Aksen 17.5mm f/1.7 5-10x Ultra Macro APO Cine Lens (ARRI PL)
• Tripod Collar
• 2 x 15mm Rod
• Front Cap
• Rear Cap
