Sony A1 Overview



Alpha Flagship

A flagship in the truest sense, the Sony a1 is the one camera designed to do it all. Built without compromise, this full-frame mirrorless offers high-resolution for stills shooting, impressive 8K video recording, speed and sensitivity, and connectivity for the most demanding professional workflows.



Exmor RS Stacked Sensor and BIONZ XR Processor

50.1MP Full-Frame BSI CMOS Sensor and BIONZ XR

Newly developed 50.1MP Exmor RS full-frame sensor features a stacked back-illuminated design with integrated memory that maintains high image clarity, expandable sensitivity up to ISO 102400, and a 15-stop dynamic range while also enabling fast 30 fps shooting and and phase-detection AF. The sensor also enables recording lossless compressed raw files for flexible editing during post-production while maintaining a relatively lightweight file size. Additionally, the 50.1MP resolution not only benefits stills shooters as it also offers full-frame 8.6K oversampling for 8K video recording.

A revised BIONZ XR engine greatly benefits image processing capabilities throughout the camera system, including up to 8x faster processing, greatly reduced rolling shutter, and more fluent interface and file management handling speeds.



Up to 30 fps Shooting and Updated Shutter

• Efficient sensor design and processing enables high-speed shooting up to 30 fps at full 50.1MP resolution, with full AF and AE capabilities, when working with an electronic shutter. When working with the mechanical shutter, speeds are still kept high at 10 fps. Also, a large buffer memory permits recording up to 155 compressed raw frames, or 165 JPEGs, in one single burst at 30 fps.
• Suiting fast-paced continuous shooting is a blackout-free viewfinder experience, which makes use of a 240 fps refresh rate for fluent eye-level viewing.
• Updated electronic shutter offers silent, vibration-free performance and also supports anti-flicker shooting for working under fluorescent, LED, or other flicker-prone types of artificial light, even while shooting at 30 fps with 120 fps AF speeds.
• Due to quickened readout speeds, electronic shutter flash sync is possible up to 1/200 sec. Even faster flash sync speeds are available when using the updated mechanical shutter, too, which can sync at 1/400 sec in full-frame or 1/500 secwith an APS-C crop.



8K 30p and 4K 120p Video

8K 30p and 4K 120p Support

• Making use of the high-resolution sensor and fast processing capabilities, UHD 8K 30p XAVC HS 10-bit 4:2:2 video recording is possible using the full width of the sensor, offering 8.6K oversampling for impressive sharpness and realism. For easy handling of this high-res recording mode, low bit-rate proxy files with HD resolution can be simultaneously recorded faster for playback. Also, 8K video at 400 Mb/s can be written to a V90-rated UHS-II SD card, or 200 Mb/s to a V60 card, and 8K can be output over HDMI in 8-bit 4:2:0 format.
• Recording up to UHD 4K is possible with frame rates up to 120p; when recording up to 60p the a1 offers full pixel readout and at 120p it uses a 10% crop. Oversampled 4K recording is also possible, via a 5.8K capture area, with a Super 35 crop. Internal 10-bit 4:2:2 sampling is also possible in all recording modes and, if recording externally via the full-size HDMI A port, 16-bit raw output is also possible from a 4.3K capture for even greater tonal reproduction and post-production flexibility.



Recording Flexibility

• The a1 employs a pair of codecs to suit different workflows: XAVC HS, which uses HEVC/H.265 encoding to retain more detail at smaller bitrates and XAVC S-I, which is an intraframe codec for consistent performance and quality at bitrates up to 600 Mb/s.
• High-speed, 120 fps recording also enables 4x and 5x slow-motion movie recording with the frame rate playback set to either 30p or 24p or, if moving down to Full HD resolution, an effective 240p frame rate is also available for even greater motion control.
• No recording time limit allows for unlimited clip lengths and the camera's physical design features an improved heat-dissipating structure to promote longer possible recording times; longer than 30 minutes for 8K 30p or 4K 60p videos, or recordings done at 10-bit 4:2:0.



Advanced Color Control

• S-Cinetone can be used to deliver distinct colors and healthy-looking skin tone rendering that matches the FX9 and FX6 cameras and is based on technology from the professional Cinema Line cameras, such as the VENICE. This color profile offers natural mid-tones, soft colors, and especially well-controlled highlights.
• Affording extensive customizable color and gamma controls, the you can adjust the gamma, black level, knee, color level, and more. Also, users can use the same S-Log2 Gamma Curve that is found on high end Sony Cinema cameras that squeezes up to 1300% more dynamic range into the video signal then traditional REC709, for increased post-production flexibility.
• HLG (Hybrid Log-Gamma) support is also available, along with the BT.2020 color space, for recording within a wide color gamut and, in addition to S-Log2, S-Log3 is also available for producing a 15+-stop dynamic range with increased grading control in the shadow to mid-tone regions of the image.



Fast Hybrid AF System

• Covering 92% of the image area, a Fast Hybrid AF system incorporates 759 phase-detection points along with 425 contrast-detection areas for quick and precise focusing in a variety of lighting conditions with sensitivity down to -6 EV. This focusing system is available for use in all recording modes, to benefit both video and stills applications.
• Fast sensor readout and improved processing also enables up to 120 AF and AE calculations to be performed per second for faster, more responsive tracking and accurate results.

• Lock onto subjects quickly using Real-time Tracking for AI-based tracking on moving subjects or touch tracking for manual selection of the subject.
• Real-time Eye AF, suitable for both humans and animals, also ensures critical sharpness when shooting portraits.
• Dedicated Real-time Eye AF Bird Mode lets you select the bird to be tracked and the camera will automatically detect the bird's eye and track it, regardless if the bird is in flight or still. This mode even works once a sitting bird takes flight.
• Helping to fine-tune how the focusing system performs, seven-step AF transition speed and five-step AF subject shift sensitivity controls let you refine how quickly focus shifts from point to point and how smoothly focusing shifts occur.



Body Design and Connectivity

Tru-Finder EVF and Tilting Touchscreen LCD

• An impressive QXGA OLED Tru-Finder EVF features a high 9.44m-dot resolution and 0.9x magnification for exceptionally bright, clear, and detailed eye-level viewing.
• The EVF has a dedicated 240 fps High Quality+ setting for smooth motion rendering and the finder's physical design has a long 25mm eye point, 41° field of view, and features a fluorine coating on the outermost viewfinder element to benefit cleaning.

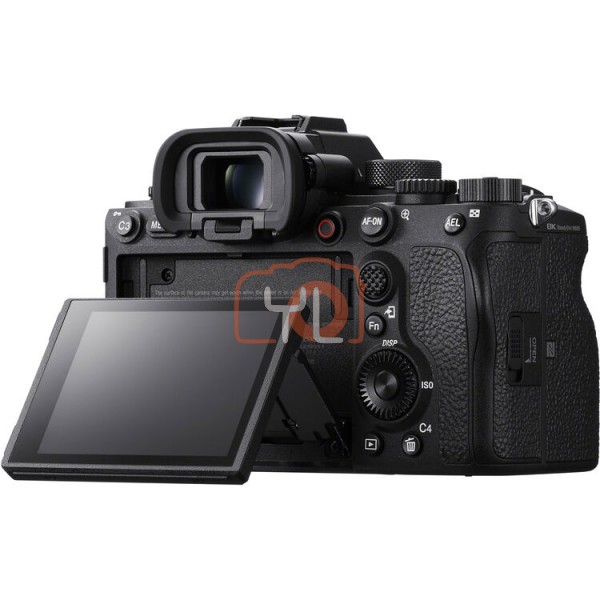

• A 3.0" 1.44m-dot tilting screen benefits working from high and low angles. This LCD is a touchscreen, too, for intuitive shooting control and menu navigation.
• Updated menu structure is more intuitive and complements having different workflows and settings selections for movie recording and stills shooting. The menu system also works in conjunction with the touchscreen design of the rear LCD.



Versatile and Durable Design

• Dual memory card slots both accept either CFexpress Type A or SD-type memory cards. The dual slot design allows for flexible file saving and handling and can be configured to partition file types or can be used for overflow recording. Additionally, both of the card slots are rated to support UHS-II memory cards for faster transfer speeds.
• Accepts the high-capacity NP-FZ100 rechargeable lithium-ion battery, which provides approximately 430 shots/90 minutes of recording per charge when using the viewfinder or 530 shots/95 minutes of recording per charge when using the rear LCD.
• Enhanced 5.5-stop effective 5-axis SteadyShot INSIDE image stabilization system compensates for five different types of camera shake encountered during handheld shooting of stills and video. Additionally, specifically for video, there is also an Active IS mode that adds even more precise stabilization methods for even smoother footage straight out of camera.

• Magnesium alloy chassis assures rigidity, durability, and stability while remaining lightweight. The lens mount has also been improved to better support heavy lenses, and the grip rigidity has been improved for more comfortable hand-holding.
• Extensive weather-sealing, including enhanced sealing around the battery cover, terminal cover, and chassis joints, has been employed to resist dust and moisture for reliable operation in harsh weather conditions.



Ports and Interface

• Full-size HDMI A port offers a more reliable connection when working with external recorders.
• A USB 3.2 Gen 1 Type-C port has been added, in addition to a micro-USB port, for faster, more reliable tethering support. The USB Type-C connection allows the camera to be charged or powered from the host power source while connected.
• PC sync terminal for wired flash sync with strobe packs or wireless radio remotes.
• Both 3.5mm headphone and external microphone ports facilitate greater control over audio recording.
• Multi Interface Shoe supports working with the optional ECM-B1M Shotgun Microphone or XLR-K3M XLR Adapter Kit, which provide improved, clear audio recording sound by sending a digital audio signal to the camera, opposed to an analog signal.
• Ethernet port supports 1000BASE-T wired LAN connection for transferring files over FTP.



Connectivity

• Built-in Wi-Fi and NFC enables the a1 to instantly share imagery to mobile devices for direct sharing online, and support for both 2.4 and 5 GHz bands also enables wireless tethered shooting support. Also, the 5 GHz band supports 2x2 MIMO for fast communication speeds and dual antennas ensure a reliable connection.
• Bluetooth connectivity allows for location data acquisition.

• Ethernet port offers up to 1000BASE-T speeds for quick wired LAN sharing and remote operation.
• When working over a wired LAN, the Remote Camera Tool 2.1 app now has been enhanced for a reduced release time lag and live view delays as well as support for remote SD card formatting, FTP server switching, and changes to the still image storage destination. Wired or wireless LAN transfers can also occur in the background, while continuing to shoot.
• Imaging Edge Remote for desktop supports PC Remote shooting via the Wi-Fi connection or tethered by the wired USB Type-C port. An updated data transfer control also makes it possible to transfer files from an SD card over Wi-Fi using the Imaging Edge Mobile app even when the camera is powered off.
• Transfer & Tagging add-on app can send FTP setting parameters from your mobile device to the camera, offers automatic data upload to an FTP server with attached metadata, and can perform automatic voice-to-text conversion.



Pixel Shift Multi Shooting

This unique compositing mode allows you to achieve even greater resolution than the 50.1MP sensor affords. Working in conjunction with the sensor-shift image stabilization, this mode shifts the sensor while making 16 consecutive exposures in order to acquire approximately 199MP of information for greater color accuracy and detail than possible with a single exposure. These files can then be merged together during post-production by using the Sony Imaging software suite.

Sony A1 Specs

Key Specs

Lens Mount	Sony E
Effective Sensor Resolution	50.1 Megapixel (8640 x 5760)
Image Sensor	Full-Frame
Image Stabilization	Sensor-Shift
ISO Sensitivity	Photo Native in Manual Mode: 100 to 32,000 (50 to 102,400 Extended) Native in Auto Mode: 100 to 12,800 Video Native in Manual Mode: 100 to 32,000 Native in Auto Mode: 100 to 12,800
Max Recording Modes	H.265/XAVC HS 4:2:2 10-Bit Up to UHD 8K at 23.98/25/29.97 fps H.265/XAVC HS 4:2:0 10-Bit Up to UHD 8K at 23.98/25/29.97 fps H.264/XAVC S-I 4:2:2 10-Bit Up to UHD 4K at 23.98/25/29.97/50/59.94 fps H.264/XAVC S 4:2:2 10-Bit Up to UHD 4K at 23.98/25/29.97/50/59.94/100/120 fps H.264/XAVC S 4:2:0 8-Bit Up to UHD 4K at 23.98/25/29.97/50/59.94/100/120 fps
Max Video Output	4:2:0 8-Bit Up to UHD 8K at 23.98/25/29.97 fps 4:2:2 10-Bit Up to UHD 4K at 23.98/25/29.97/50/59.94 fps Raw 16-Bit 4.3K at 23.98/25/29.97/50/59.94 fps
Memory Card Slot	Dual Slot: CFexpress Type A / SDXC (UHS-II)
Video I/O	1x HDMI Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O	1x USB-C Input
Other I/O	1x RJ45 Data Output 1x Sony Multi/Micro-USB Data Output 1x USB-C Data Output (Shared with Power Input)
Wireless	Wi-Fi 5 (802.11ac) / Bluetooth 5.0
Display Type	Tilting 3" Touchscreen LCD
Battery	1x NP-FZ100 Rechargeable Lithium-Ion (Included)

Imaging

Lens Mount	Sony E
Sensor Resolution	Effective: 50.1 Megapixel (8640 x 5760) Actual: 50.5 Megapixel
Image Sensor	35.9 x 24 mm (Full-Frame) Stacked CMOS
Sensor Crop (35mm Equivalent)	Crop Factor: 1x Additional Modes: 1.5x *Additional Crop Occurs in Select Video Modes
Image Stabilization	Sensor-Shift, 5-Axis
Capture Type	Stills & Video

Exposure Control

Shutter Type	Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed	Electronic Shutter 1/32000 to 30 Seconds 1/8000 to 1/4 Second in Movie Mode Mechanical Shutter 1/8000 to 30 Seconds 1/32000 to 30 Seconds in Auto Mode
Bulb/Time Mode	Bulb Mode
ISO Sensitivity	Photo Native in Manual Mode: 100 to 32,000 (50 to 102,400 Extended) Native in Auto Mode: 100 to 12,800 Video Native in Manual Mode: 100 to 32,000 Native in Auto Mode: 100 to 12,800
Metering Method	Average, Center-Weighted Average, Highlight Weighted, Multiple, Spot
Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
Metering Range	-3 to 20 EV
White Balance	2500 to 9900K Presets: Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent, Incandescent, Shade, Underwater
Continuous Shooting	Up to 30 fps at Maximum Resolution for up to 155 Frames (Raw) / 165 Frames (JPEG)
Interval Recording	Yes
Self-Timer	2/5/10-Second Delay

Still Image Capture

Aspect Ratio	1:1, 3:2, 4:3, 16:9
Image File Format	HEIF, JPEG, Raw
Bit Depth	14-Bit

Video Capture

Internal Recording	H.265/XAVC HS 4:2:2 10-Bit 7680 x 4320 at 23.98/25/29.97 fps (260 to 520 Mb/s) 3840 x 2160 at 23.98/25/50/59.94/100/120 fps (50 to 280 Mb/s) H.265/XAVC HS 4:2:0 10-Bit 7680 x 4320 at 23.98/25/29.97 fps (200 to 400 Mb/s) 3840 x 2160 at 23.98/25/50/59.94/100/120 fps (30 to 200 Mb/s) H.264/XAVC S-I 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps (240 to 222 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (89 to 222 Mb/s) H.264/XAVC S 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps (100 to 280 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94/100/200/240 fps (50 Mb/s) H.264/XAVC S 4:2:0 8-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps (60 to 200 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/200/240 fps (16 to 100 Mb/s)
Video Output	4:2:0 8-Bit 7680 x 4320 at 23.98/25/29.97 fps 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/50/59.94 fps 1920 x 1080i at 50/59.94 fps 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/50/59.94 fps 1920 x 1080i at 50/59.94 fps Raw 16-Bit 4332 x 2446 at 23.98/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support	Yes
Gamma Curve	HDR-HLG, Sony S-Log 2, Sony S-Log 3
Recording Limit	No
IP Streaming	No
Built-In Microphone	Stereo
Audio Recording	XAVC: 2-Channel 16-Bit 48 kHz LPCM Audio MPEG4: 2-Channel AAC Audio

Interface

Memory Card Slot	Dual Slot: CFexpress Type A / SDXC (UHS-II)
Internal Storage	No
Video I/O	1x HDMI Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O	1x USB-C Input
Other I/O	1x RJ45 Data Output 1x Sony Multi/Micro-USB Data Output 1x USB-C Data Output (Shared with Power Input)
Wireless	Wi-Fi 5 (802.11ac) / Bluetooth 5.0
Mobile App Compatible	Yes: Android & iOS App Name: Imaging Edge Mobile Functionality: Access Stored Files, Remote Control
Global Positioning (GPS, GLONASS, etc.)	GPS *Via Connected Smartphone

Monitor

Display Type	Tilting 3" Touchscreen LCD
Resolution	1,440,000 Dot

Viewfinder

Type	Electronic (OLED)
Size	0.64"
Resolution	9,437,184 Dot
Eye Point	25 mm
Coverage	100%
Magnification	Approx. 0.9x
Diopter Adjustment	-4 to +3

Focus

Focus Type	Auto and Manual Focus
Focus Mode	Continuous-Servo AF, Direct Manual Focus, Manual Focus, Single-Servo AF
Autofocus Points	Phase Detection: 759 Contrast Detection: 425
Autofocus Sensitivity	-4 to +20 EV

Flash

Built-In Flash/Light	No
Flash Modes	Auto, Fill Flash, Hi-Speed Sync, Off, Rear Sync, Red-Eye Reduction, Slow Sync
Maximum Sync Speed	1/400 Second
Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System	TTL
Shoe Mount	1x Intelligent Hot Shoe
Non-Shoe Flash Connection	PC Sync Port

General

Battery	1x NP-FZ100 Rechargeable Lithium-Ion, 7.2 VDC, 2280 mAh (Included)  • Approx. 430 Shots
Tripod Mount	1x 1/4"-20 Female
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 131°F / -20 to 55°C
Materials	Magnesium Alloy
Dimensions (W x H x D)	5.1 x 3.8 x 2.7" / 128.9 x 96.9 x 69.7 mm
Weight	1 lb / 652 g (Body Only) 2 lb / 737 g (With Battery, Recording Media)

• 50MP Full-Frame Exmor RS BSI CMOS Sensor
• Up to 30 fps Shooting, ISO 50-102400
• 8K 30p and 4K 120p Video in 10-Bit
• 4.3K 16-Bit Raw Video Output, S-Cinetone
• 9.44m-Dot EVF with 240 fps Refresh Rate
• 759-Pt. Fast Hybrid AF, Real-time Eye AF
• 5-Axis SteadyShot Image Stabilization
• Dual Drive Mech. Shutter, 1/400 Sec Sync
• 5 GHz MIMO Wi-Fi, 1000BASE-T Ethernet
• Dual CFexpress Type A/SD Card Slots

• Sony a1 Mirrorless Camera
• Sony NP-FZ100 Battery (2280mAh)
• Sony BC-QZ1 Battery Charger
• Sony ALC-B1EM Body Cap (Sony E)
• USB Type-C to Type-A Cable
• Cable Protector
• Shoulder Strap
• Accessory Shoe Cap
• Eyepiece Cup
