FeelWorld L4 HDMI Livestream Switcher with 10.1" LCD Monitor

RM 2075.00

  • 5-Input Video Production Switcher
  • 1 x SDI (BNC) & 4 x HDMI Inputs
  • SDI & HDMI Outputs, USB 3.0 to Computer
  • Built-In 10.1" LCD Touchscreen Display
  • Livestream via Computer & Software
  • Supports up to 1080p60 Video In/Out
  • 3.5mm Audio In & Out, 2-Ch Audio Mixing
  • Chroma Keying & Logo Overlays
  • Configurable PiP/13 x Transition Effects
  • Aluminum Housing with Built-In Fan

SKU: FEL4 • MFR #L4 (0FW-L4)

  Add to Cart
  Price Match

  Wishlist

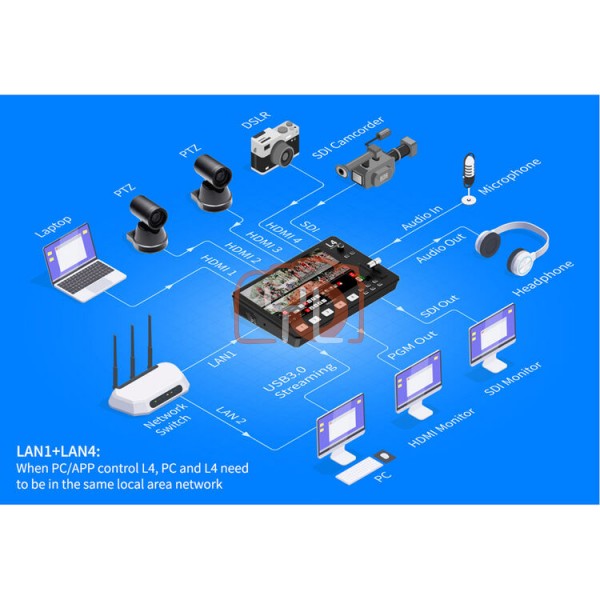

Live-switch, control, and stream your video content using one SDI and up to four HDMI video sources using the L4 HDMI Livestream Switcher with Built-In 10.1" LCD Monitor from FeelWorld. This compact video switcher can switch up to five inputs, output program and preview video via HDMI and SDI, and stream up to 1080p60 video via USB 3.0 using your computer and third-party streaming software. You can view up to seven pictures on the 10.1" touchscreen display, including the five individual inputs, PGM preview, and PST preview.

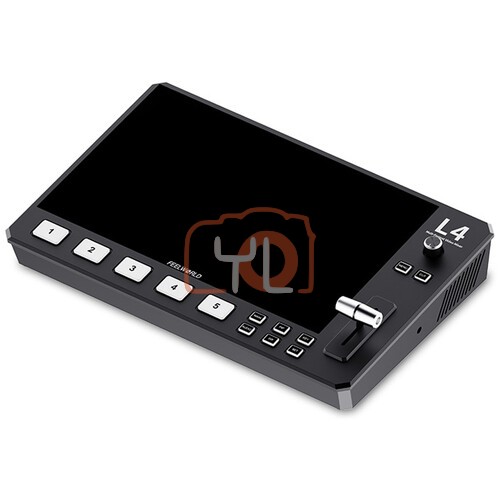

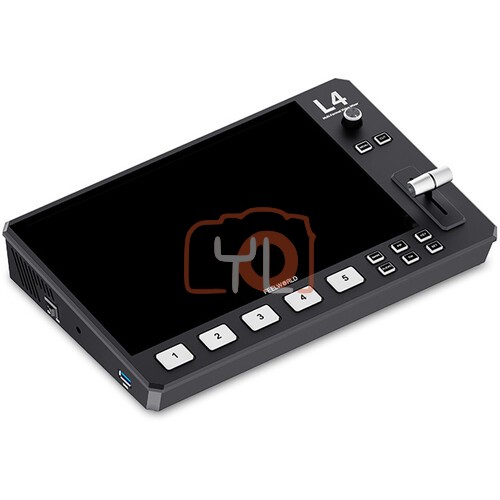

Touchscreen Monitoring and Control

  • The L4 switcher enables you to switch between inputs using the touchscreen, the T-bar, or the large LED buttons that light up with green or red tally indicators, or it can be controlled via a computer or smartphone app.
  • You can monitor all four inputs using the built-in color TFT display on the unit, or you can output Program/Preview via the HDMI and SDI outputs.

Chroma Keying and Video Effects

  • Create engaging video using the configurable PiP (picture-in-picture) modes and 13 transition effects.
  • Add professional effects via chroma keying.

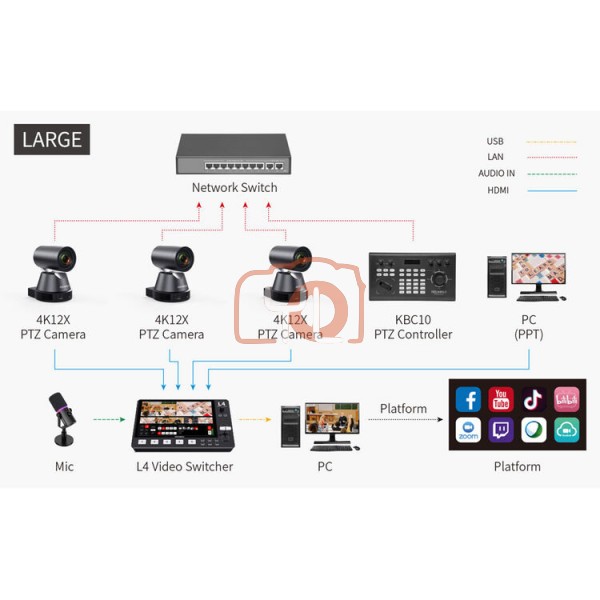

Fast USB 3.0 Livestreaming

  • It supports video output up to 1080p60 via USB 3.0 for use with a variety of third-party streaming software or NLE video editing systems.
  • Use with popular platforms like YouTube, Facebook Live, Twitch, TikTok, and more.

Audio Options

  • You can utilize the HDMI or SDI-embedded audio or embed audio from a microphone or external source using the 3.5mm stereo input jack.
  • There is also a 3.5mm output jack to de-embed the audio for use with external speakers or an audio mixer.
  • The L4 switcher supports 2-channel audio mixing.

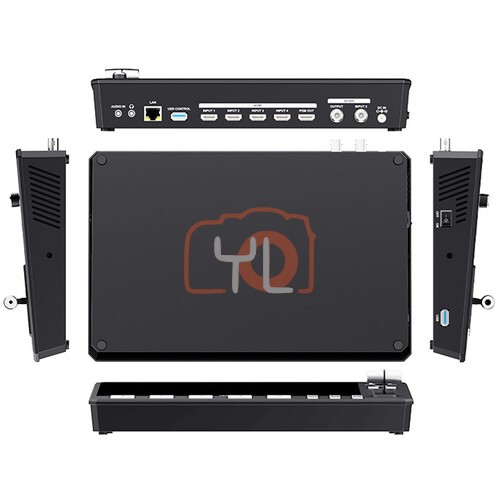

Durable Design

  • This slim switcher features a durable aluminum housing.
  • A built-in fan switches on automatically to keep the unit cool.

FeelWorld L4 Specs

Mix Effects

Effect Types

1x Graphic, Transition, Chroma Key

Processing

Switching Type

Pushbutton, T-Bar, Touchscreen
Processing Resolution

1080p at 23.98/24/30/50/60

Input

Number of Video Input Sources

5

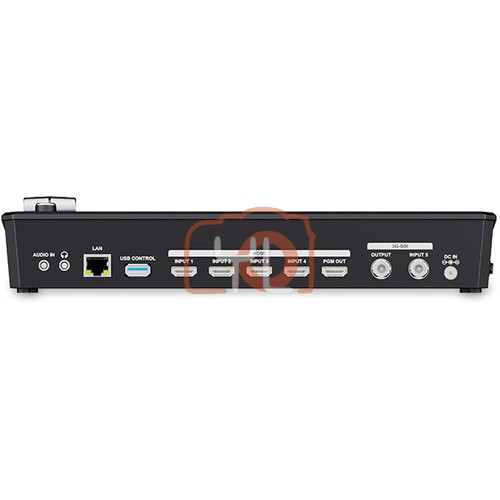

Video Inputs

4x HDMI (1.4) Female
1x BNC (HD-SDI) Female
Input Video Format

HDMI
UHD 4K at 23.98/24/25/30 fps
1080p at 24/30/50/60 fps
1080i at 50/60 fps
720p at 50/60 fps
WUXGA (1920 x 1200) at 60 fps
WUXGA+ (1680 x 1050) at 60 fps
UXGA (1600 x 1200) at 60 fps
WXGA+ (1440 x 900) at 60 fps
FWXGA (1366 x 768) at 60 fps
1360 x 768 at 60 fps
SXVGA (1280 x 1024) at 60 fps
WXGA (1280 x 800) at 60 fps
XGA (1024 x 768) at 60 fps
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 25/29.97/30/50/59.94/60 fps
Audio Inputs

1x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Input

HDMI
SDI

Output

Video Output Channels

3
Video Outputs

1x HDMI (1.4) Female
1x USB-A (3.0) Female
1x BNC (HD-SDI) Female (Monitor)
Output Video Format

HDMI
1080p at 25/30/50/60 fps
720p at 50/60 fps
1360 x 768 at 60 fps
SXGA (1280 x 1024) at 60 fps
1280 x 768 at 60 fps
XGA (1024 x 768) at 60 fps
USB-C
1080p at 25/30/50/60 fps
720p at 50/60 fps
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
720p at 25/29.97/30/50/59.94/60 fps
Audio Outputs

1x 1/8" / 3.5 mm TRS Stereo Analog Female
Output Audio Format

Analog
Embedded Audio Output

HDMI: 2-Channel
USB-A: 2-Channel
Multiview Output

4-Way Multiview via HDMI

Connectivity

Other I/O

1x RJ45 LAN Input/Output
1x USB-A 2.0 Input

Display

Display Size

5.5"

Hardware

OS Compatibility

Computer: Windows
Mobile: Android/iOS
Processor

Not Specified by Manufacturer
Wireless

No

Power

Power I/O

1x Barrel (12 VDC at 3 A) Input
Power Consumption

Device: 27 W

General

Operating Conditions

32 to 140°F / 0 to 60°C at 10 to 85% Humidity
Dimensions

11.43 x 7.46 x 2.19" / 29.02 x 18.95 x 5.57 cm
Weight

3.26 lb / 1.48 kg

Packaging Info

Package Weight

4.45 lb
Box Dimensions (LxWxH)

16.8 x 9.6 x 3.2"
  • 5-Input Video Production Switcher
  • 1 x SDI (BNC) & 4 x HDMI Inputs
  • SDI & HDMI Outputs, USB 3.0 to Computer
  • Built-In 10.1" LCD Touchscreen Display
  • Livestream via Computer & Software
  • Supports up to 1080p60 Video In/Out
  • 3.5mm Audio In & Out, 2-Ch Audio Mixing
  • Chroma Keying & Logo Overlays
  • Configurable PiP/13 x Transition Effects
  • Aluminum Housing with Built-In Fan
Items Included
  • FeelWorld L4 HDMI Livestream Switcher with 10.1" LCD Monitor
  • Power Adapter
  • USB Cable
