Pixel RGBlink mini-mx SDI 10-Channel All-in-One Switcher

RM 6531.00

Key Features
  • Quad HDMI 2.0 & Quad 3G-SDI Inputs
  • USB-C UVC Webcam Input
  • Integrated PTZ Camera Control
  • Dynamic Overlays/Scoreboard, VFA Feature
  • Ethernet IP/NDI|HX2 Streaming/Control
  • Dual USB-C Outputs to Record & Stream
  • Audio Mic/Line Inputs & Outputs
  • Program & Multiview Outputs
  • Built-In 5.5" LCD Screen
  • Switching Effect Modes & Chroma Key

SKU: 230-0009-01-0(6976965941129)

  Add to Cart
  Price Match

  Wishlist
The mini-mx SDI 10-Channel All-in-One Switcher from RGBlink is a portable, all-in-one switcher with support for 1080p HD video I/O and for 24/7 operation. This versatile mini-mx SDI switcher features transition effects, HDMI/SDI/NDI|HX2 input for professional broadcast productions, graphics/logo insertion, IP and TAO Cloud remote control, chroma keying, and PTZ camera control. This model also includes dynamic text and scoreboard overlay support as well as a configurable VFA (Video-Follows-Audio) feature.

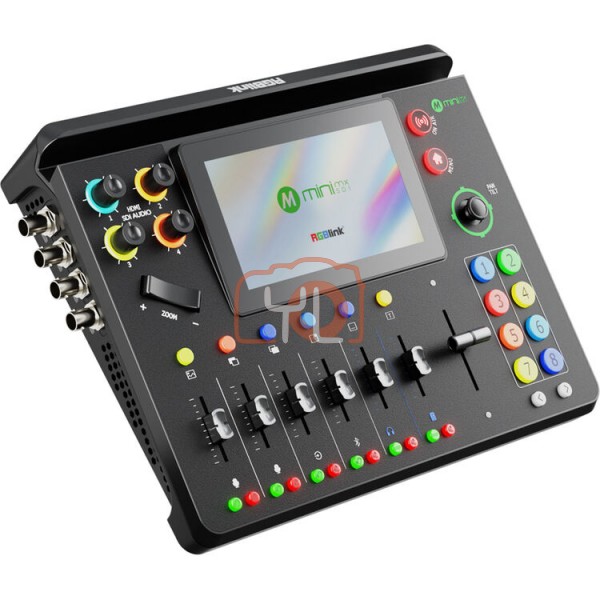

Full-Color Display and Interface
The mini-mx SDI features an onboard 5.5" HD full-color display that monitors all input channels and outputs images in real time.



Its full-featured keyboard allows fast control of any function using fast-select buttons with color LEDs, knobs, a joystick, and a fader.

Versatile 10-Channel Input

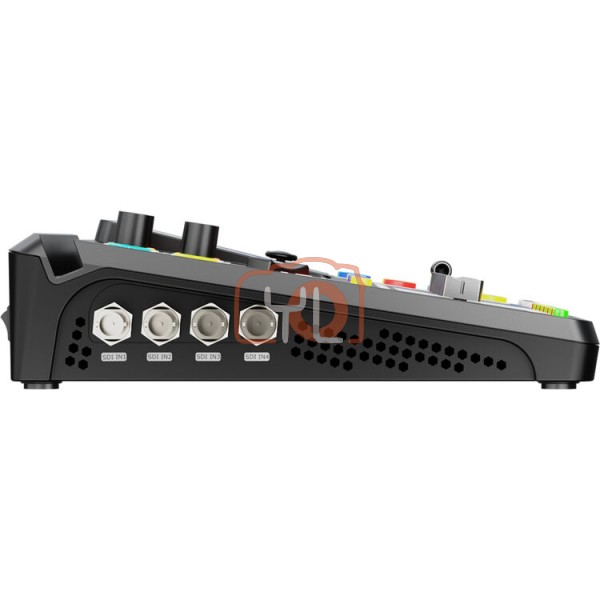

The 10-channel switcher features four 3G-SDI inputs, four HDMI inputs, and an Ethernet connection for an NDI|HX2 input.



You can also connect the mini-mx SDI to a laptop for instant recognition as a webcam to enable capture for apps such as Zoom, Teams, vMix, OBS, and more.

PTZ Camera Control
The mini-mx supports industry-standard VISCA and NDI|HX2 protocols for PTZ control directly from the mixer. Control up to four separate cameras with pan, tilt, zoom, and focus.



Together with the toggle on the front panel, the integrated joystick provides tactile control for each PTZ camera. The joystick and toggle are also dynamically assigned to settings including scale, position, and crop when a layer being controlled.

Streaming and Output Options
The mini-mx SDI supports streaming output via NDI|HX2 and IP as well as USB-C output for streaming to Teams, Zoom, or any collaboration platform. You can stream up to four multiple platforms simultaneously as well as directly to the internet without a laptop. Using TAO cloud, you can stream up to 32 platforms or connections simultaneously. It supports advanced H.265 compression and encoding for high-performance streams.



Other output options include configurable program (PGM), preview (PVW), and multiview outputs as well as a USB-C output for recording. You can also output in smartphone and tablet vertical format for social media streaming such as Instagram.

Recording
The USB-C 3.0 recording output interface can be directly connected to a hard drive or flash drive with a maximum capacity of 2TB.



The mini-mx SDI can simultaneously record while streaming, and you can record up to 100 hours of 1080p video using a 160 Mb/s data rate. Audio and video can be imported into your streams by connecting a USB drive.

Audio Features

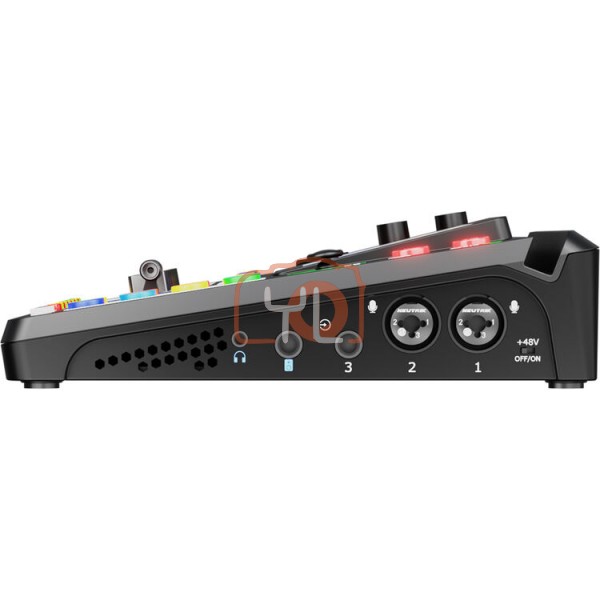

The mini-mx SDI features external balanced line-level audio inputs using TRS 1/4" jacks, and there is also two combo XLR-1/4" mic inputs with 48V phantom power to enhance compatibility with a wide range of studio mics. The mini-mx SDI also supports configurable VFA (Video Follows Audio), so your original embedded audio remains with the source.



The audio automatically switches when using any HDMI embedded audio video source to PVW and PGM outputs. You can also configure audio delay for the mic or camera inputs to keep the audio in sync with the video. The professional audio console with dynamic button operation provides precise control, allowing for easy volume adjustment and enabling one-key mute and monitoring.

Layers and Color Rendering
The switcher enables presenters to be in virtual studios and environments with the chroma key function.



Select from standard key colors and enable chroma key directly on mini-mx SDI without the need for an app. It allows you to refine color selection and optimize tolerances right from the touchscreen.

Video Features
Assemble your visuals with multiple layers of video and graphics. The mini-mx SDI offers two full video layers plus background image and two graphic overlays from the media pool. Also supported dynamic text overlay/scoreboard for productions that require dynamic, live updates.



Each of the two assignable video layers maybe scaled, positioned, and cropped with these placed over the background. Besides dual video sources, you can also add media pool graphic overlays for lower thirds and branding logos and seamlessly switch between graphic elements.

Presets, Effects, and Transitions
Select any source or preset with control panel thumbnails and icons that are an intuitive way to present and stream. It supports saving and quick recall of 16 preset scenes, including graphics, audio, and even the parameters of the PTZ position and focus enabling smooth transitions between scenes.



The mini-mx SDI also includes multiple DVE transition effects from preset to program.

TAO Cloud
Web app companion apps for laptop and mobile devices allow remote control and streams on the mini-mx SDI. Fully integrated with RGBlink's TAO Cloud, you can control remote streaming configurations via the internet.
Key Features
  • Quad HDMI 2.0 & Quad 3G-SDI Inputs
  • USB-C UVC Webcam Input
  • Integrated PTZ Camera Control
  • Dynamic Overlays/Scoreboard, VFA Feature
  • Ethernet IP/NDI|HX2 Streaming/Control
  • Dual USB-C Outputs to Record & Stream
  • Audio Mic/Line Inputs & Outputs
  • Program & Multiview Outputs
  • Built-In 5.5" LCD Screen
  • Switching Effect Modes & Chroma Key
  • RGBlink mini-mx SDI 10-Channel All-in-One Switcher
  • USB-C PD Power Adapter
  • USB-C Cable
